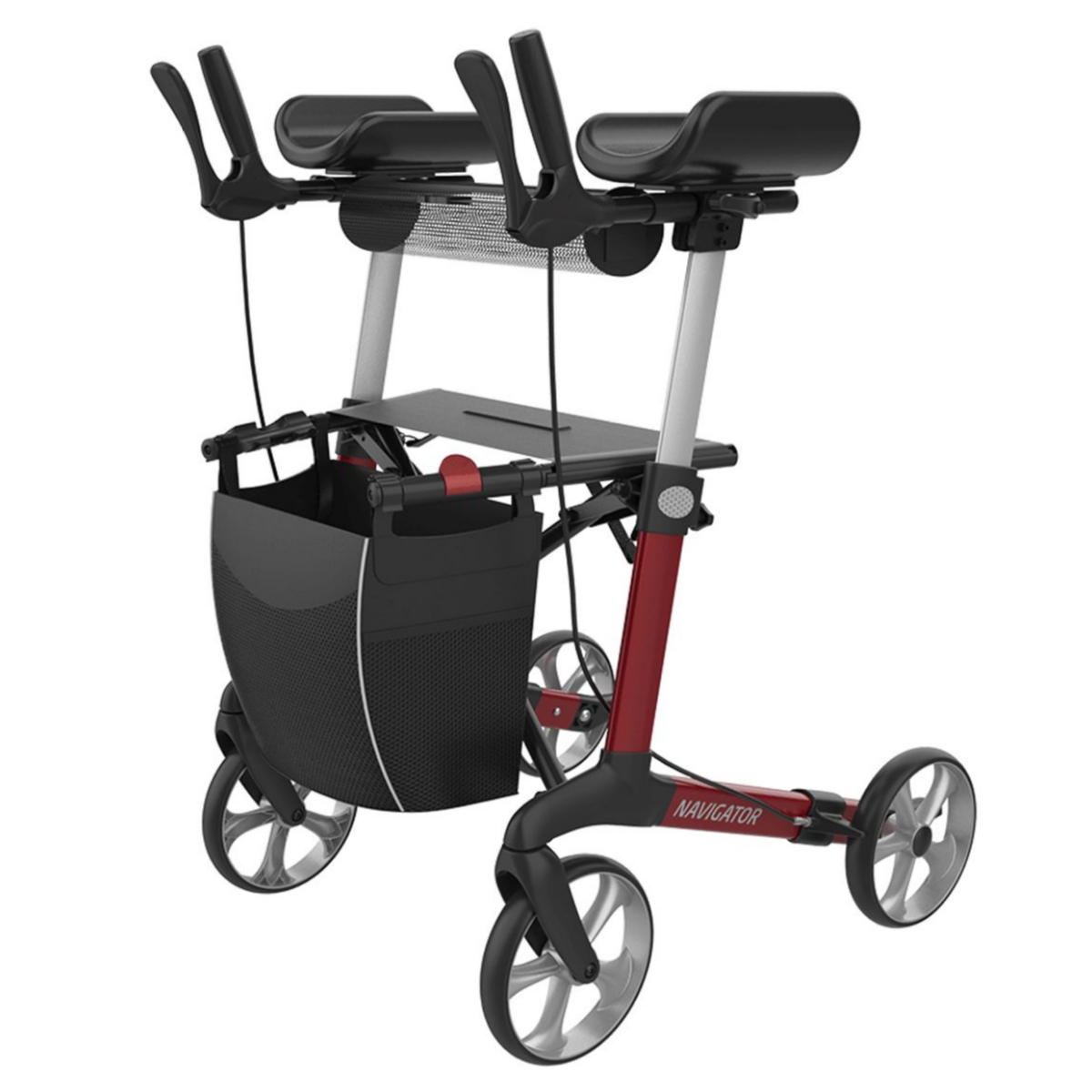

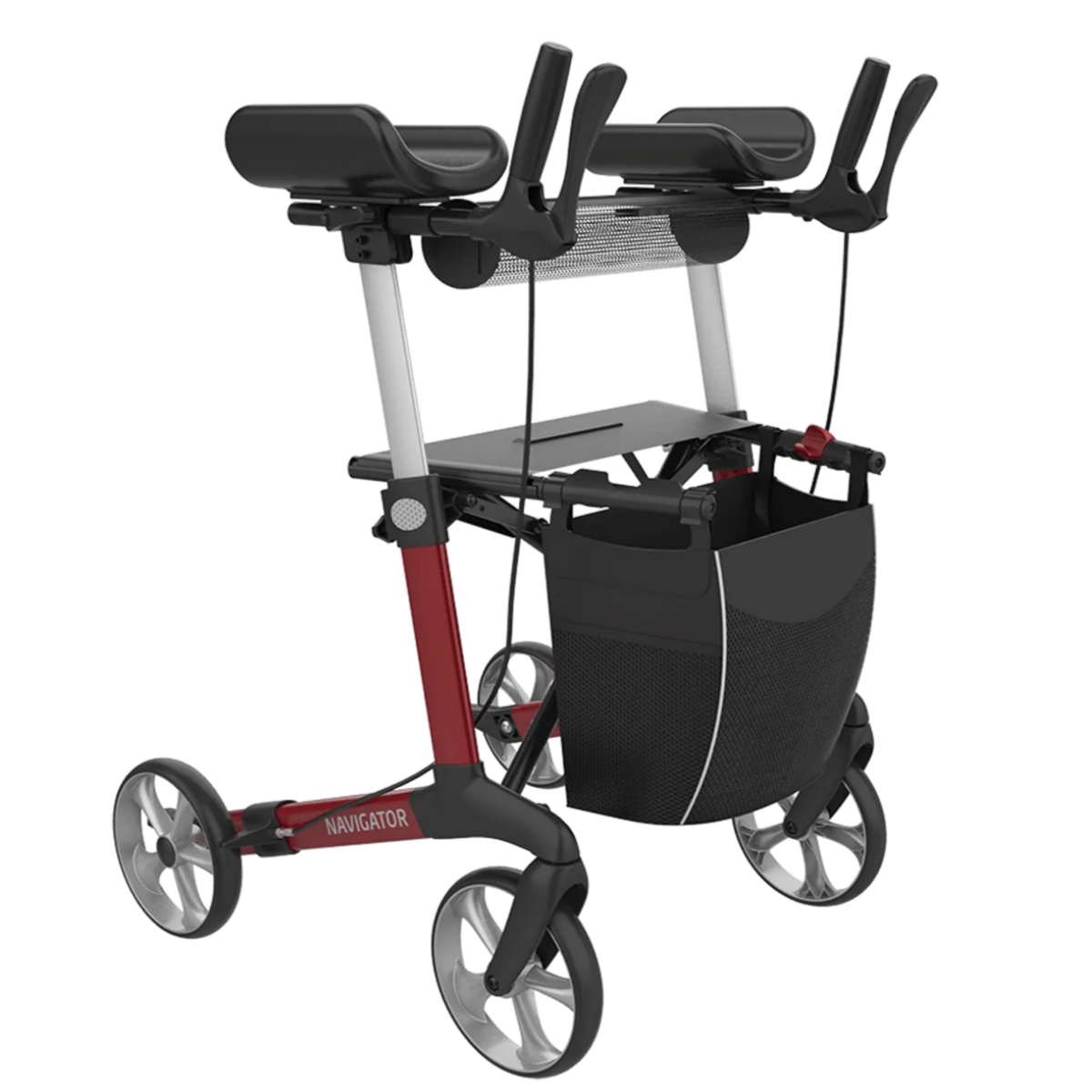

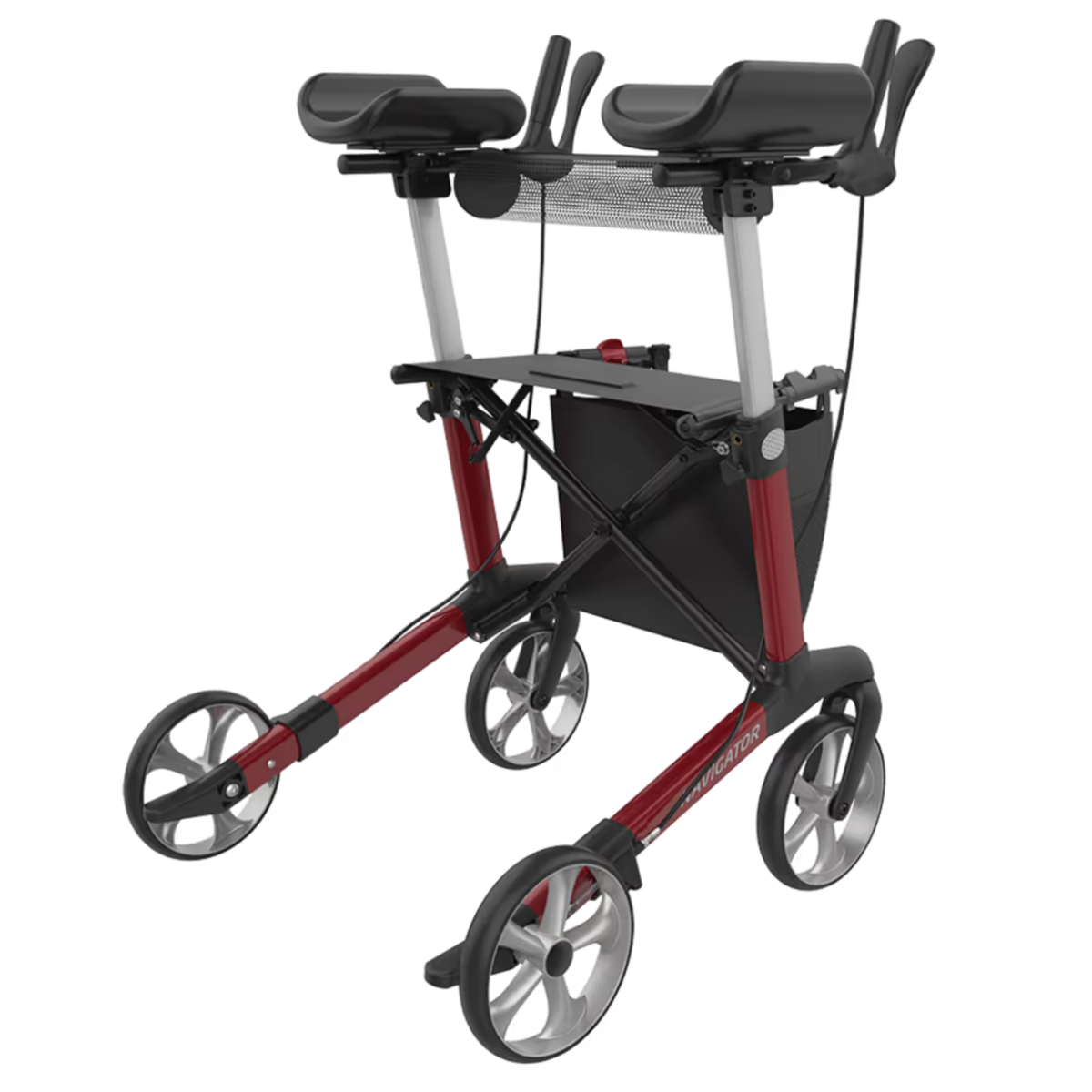

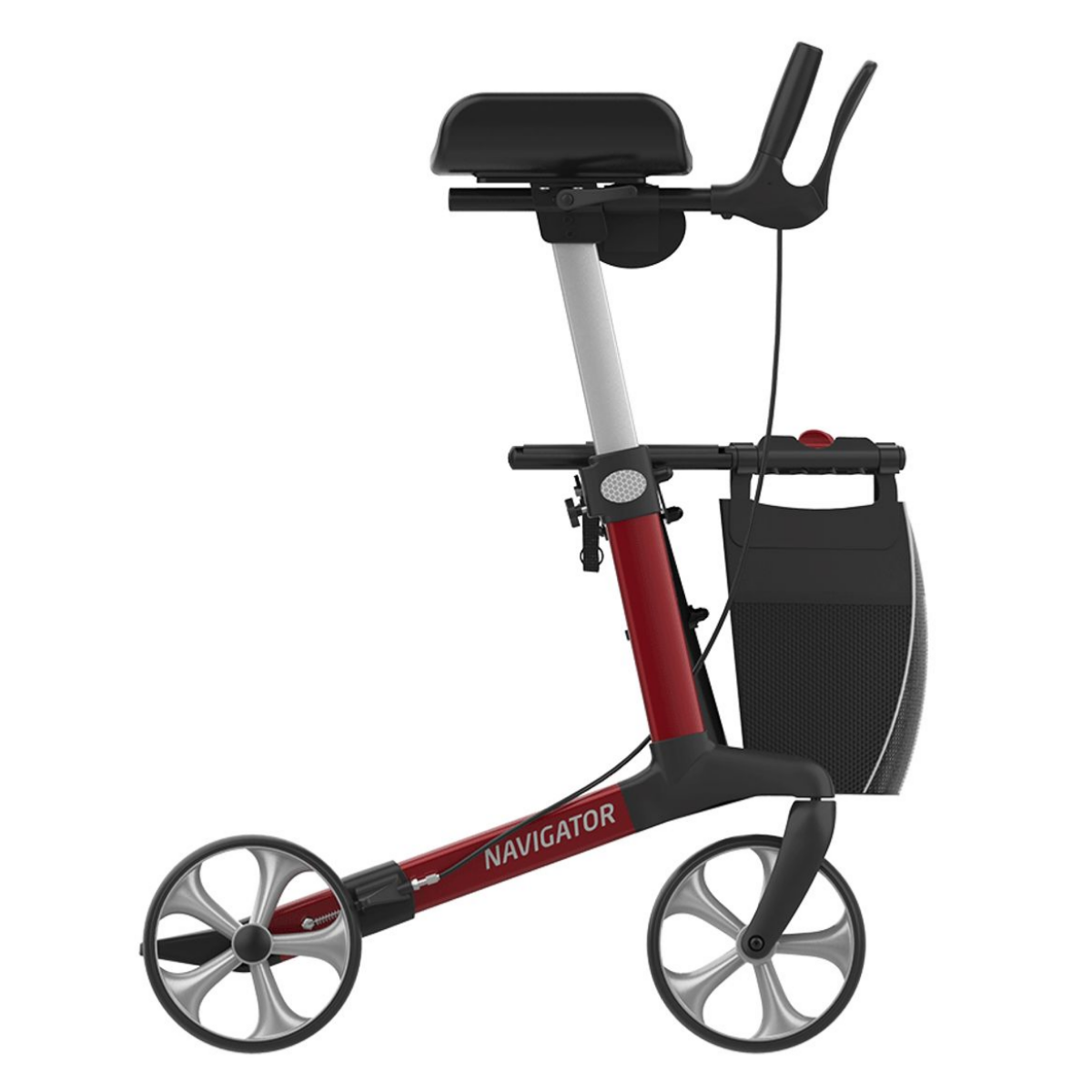

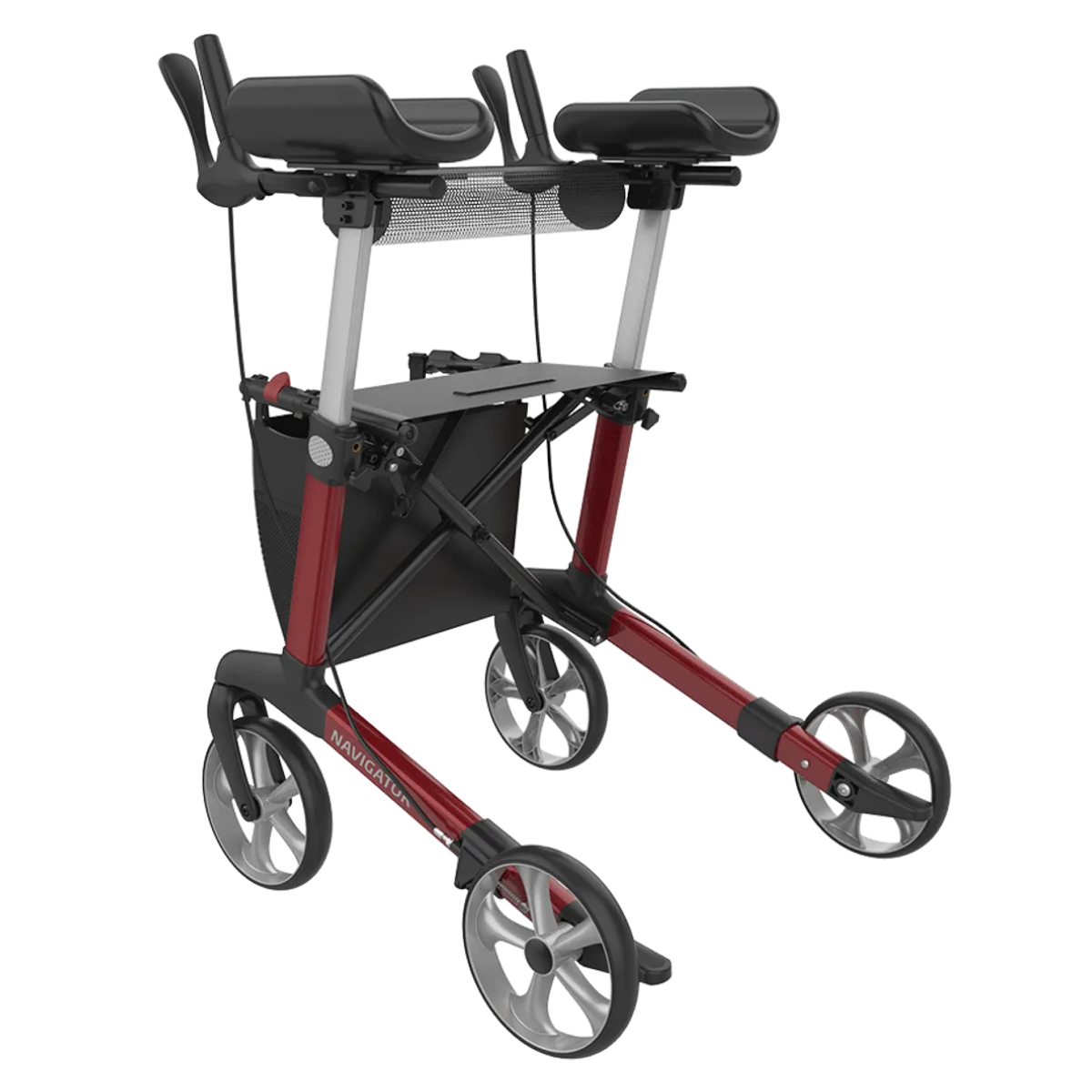

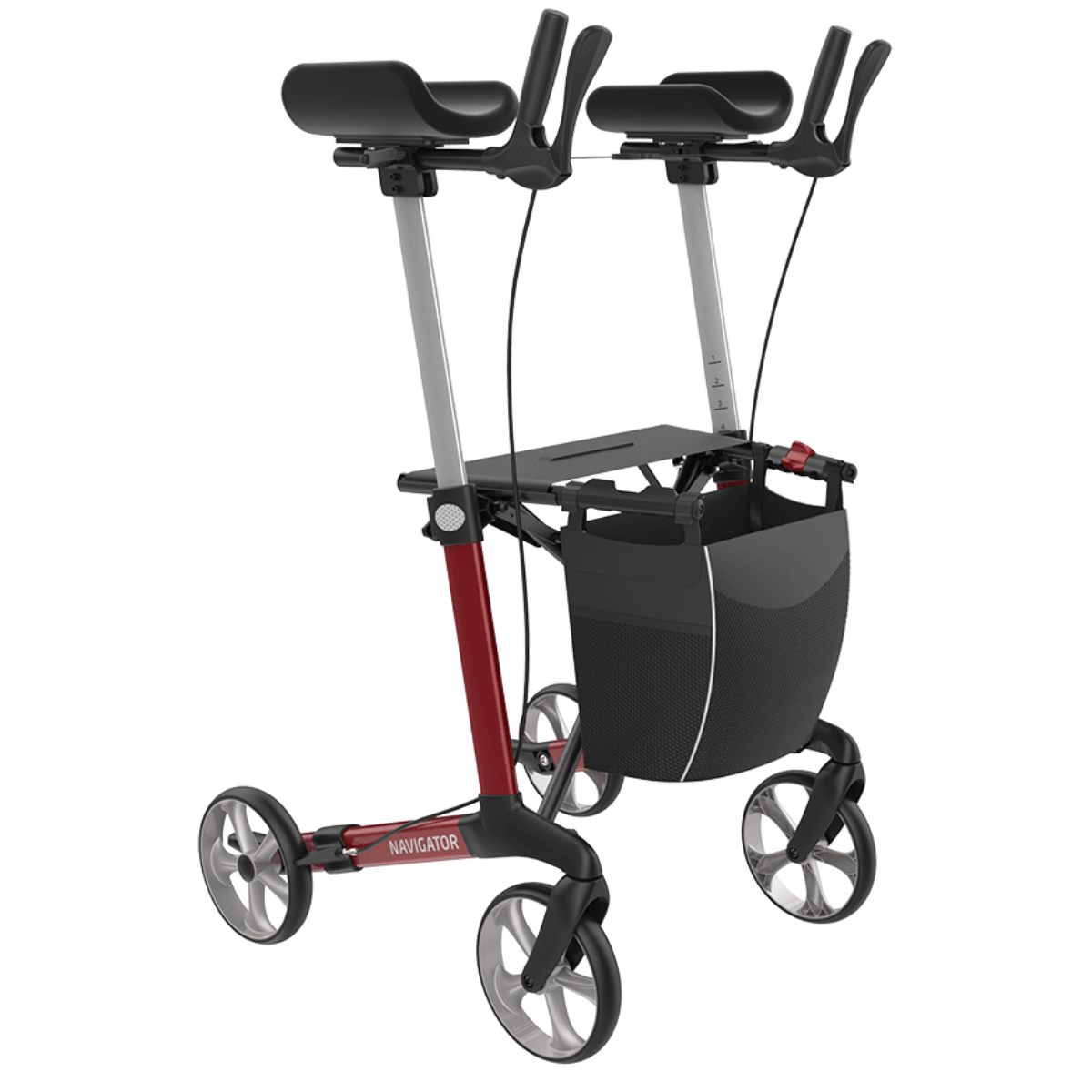

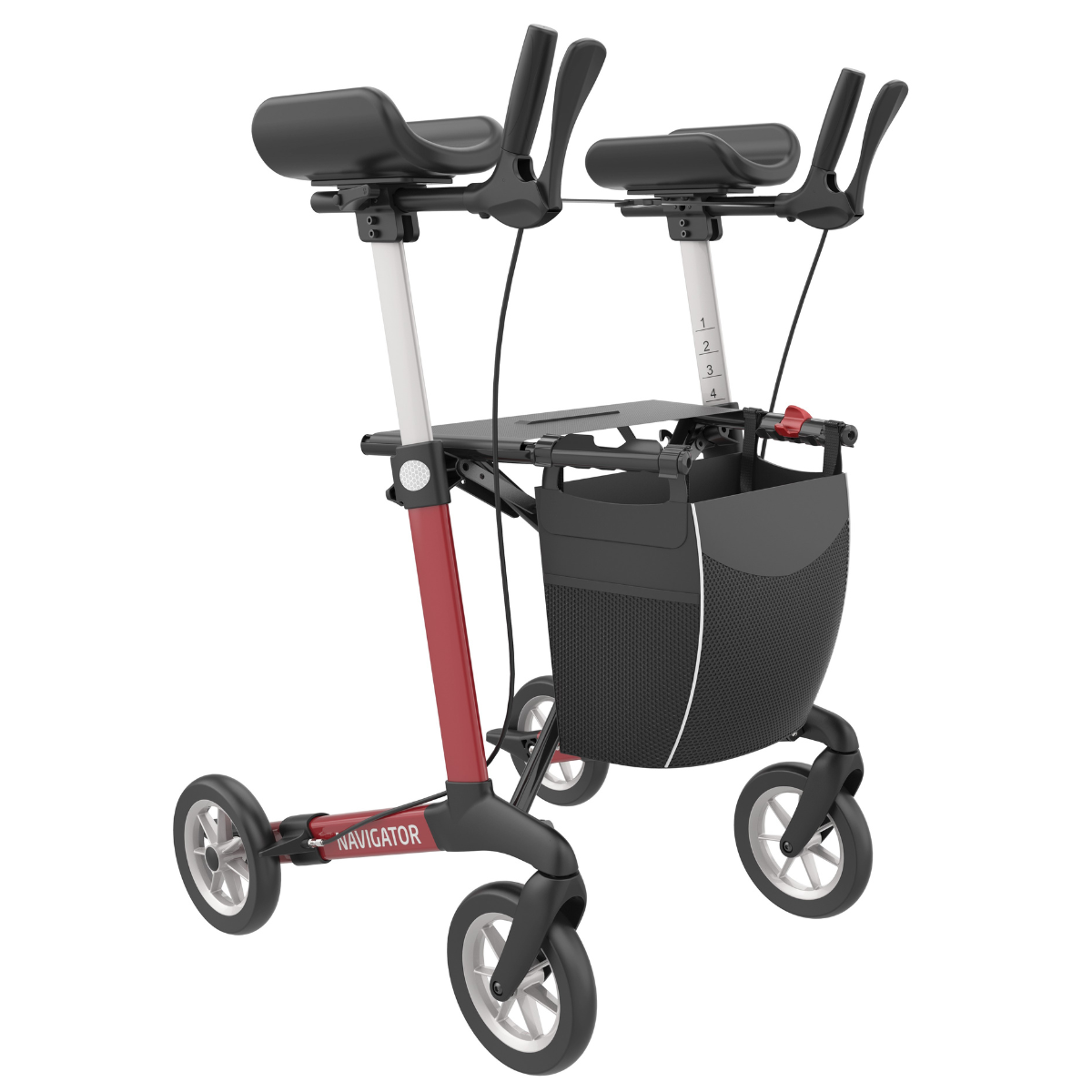

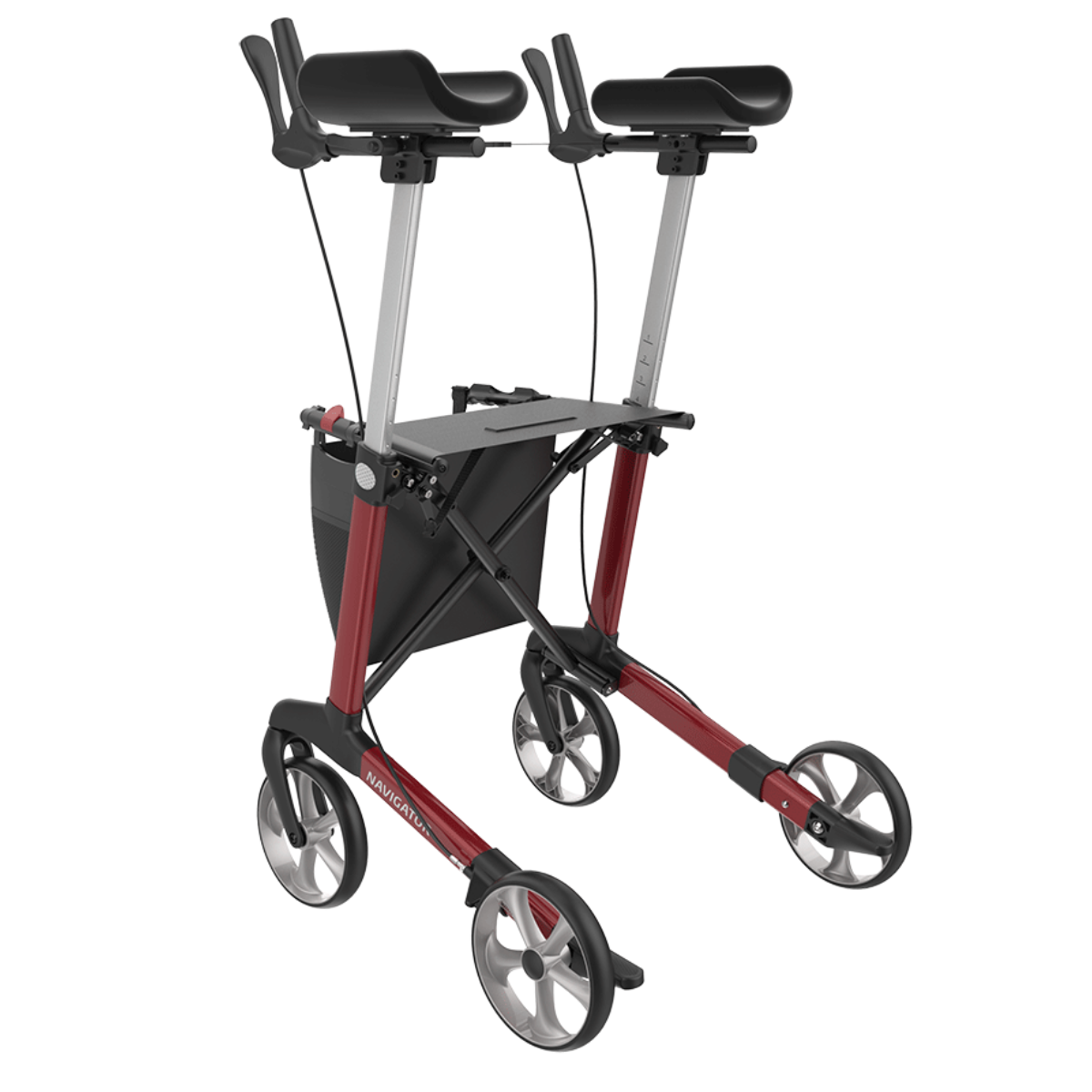

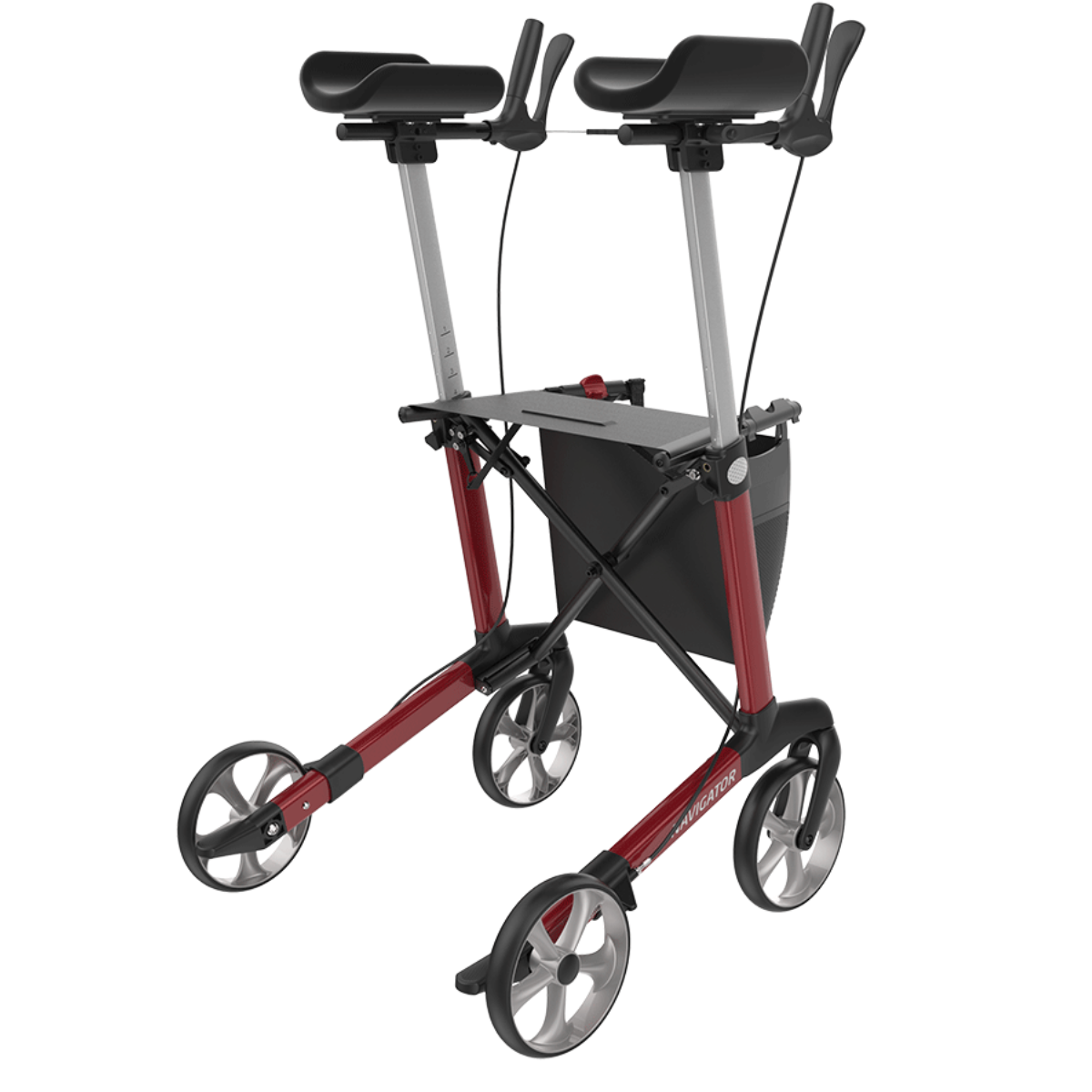

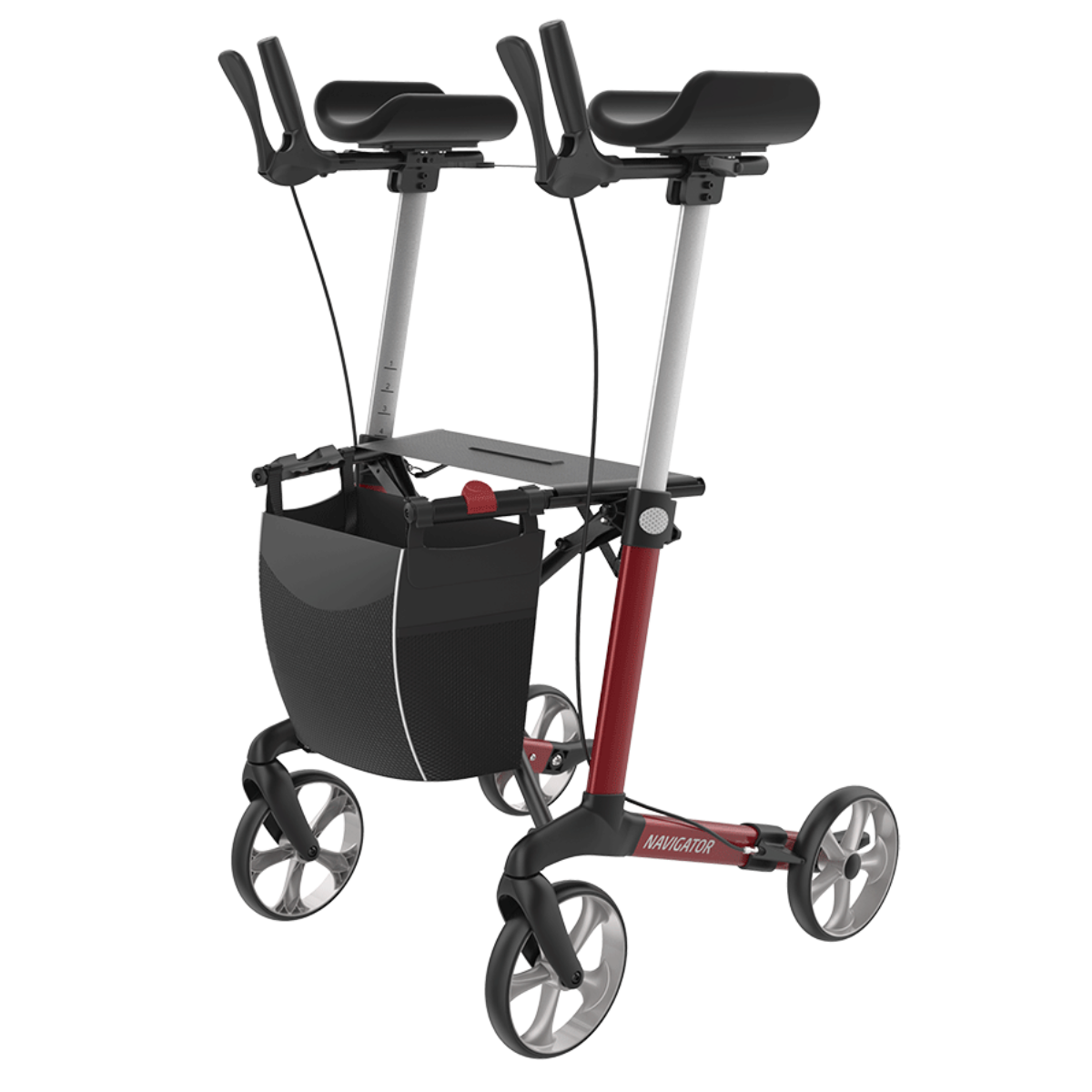

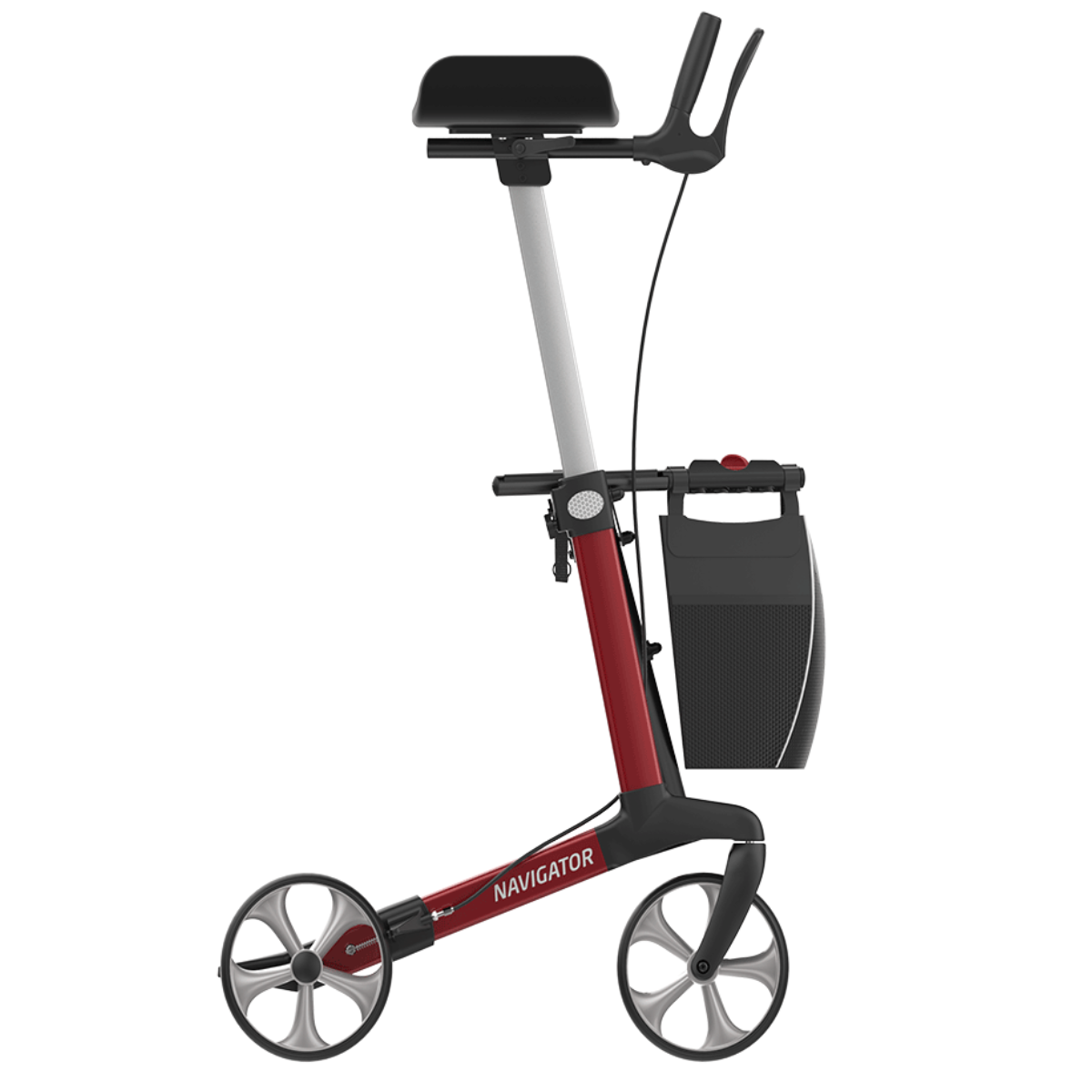

Navigator Server W swivel forearm support indoor Arthritis rollator by Rehasense

The stylish indoor Navigator Server W with swivel forearm supports (gutter frame) is a rollator designed for users with arthritis and/or limited arm and hand function.
It is perfect for users who lack wrist strength or can be used for rehabilitation.

We recommend talking to a medical professional before purchasing this product.

Features

• Available in Red only
• The manufacturer recommends indoor use only, however, the rollator can be used outside on even surfaces
• Safety: all four wheels must touch the surface at all times
• Material: Aluminium
• Soft and comfortable, the swivel/rotating forearm supports with brake handles are multi-adjustable (depth, height and angle)

• Reliable and easy-to-use handbrakes with a locking function
• Practical, removable textile shopping bag

• Safety reflectors on the side and reflective seams on the shopping bag
• Step pedal to help climb kerbs
• Soft PU unbreakable wheels
• Warranty: 5 years limited
• See more details in the User Manual

Specifications

• See the component infographic here
• Product weight 10.1 kg
• Max. load capacity: 150 kg
• Seat height: 62 cm
• Seat width: 46 cm
• Seat depth: 18.5 cm
• Unfolded measurements: 66 cm L x 63 cm W x 90-114 cm H
• Folded measurements: 66 cm L x 28 cm W x 94 cm H
• Height adjustable forearm supports: 90-114 cm
• Forearm rotating degrees: 22.5 degrees or 45 degrees inward
• Distance between forearm pads: 30 cm (centre to centre)
• Types of wheels: soft PU unbreakable
• Wheel size:
  Front - 20 cm Dia x 3.8 cm thick (8 inches)
  Rear - 20 cm Dia x 3.8 cm thick (8 inches)
• Bag weight: 0.4 kg
• Bag capacity: 5 kg
• Warranty: 5 years limited

Types of Wheels

You can choose the wheels for your rollator.

• TPE wheels (Thermoplastic Elastomers): TPE is durable, a standard issue with Rehasense walkers, and requires less pressure to apply the brakes.

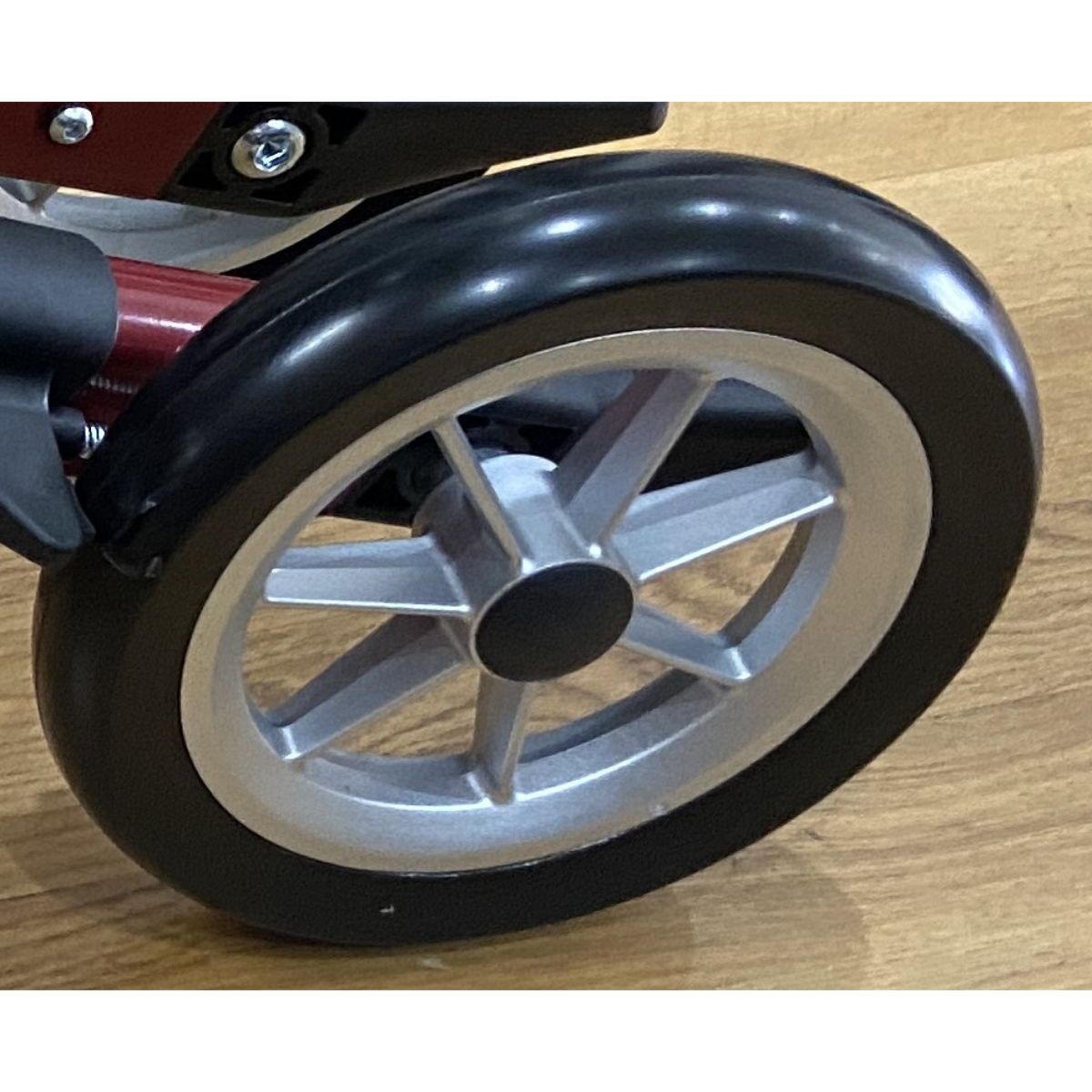

• Soft PU wheels: increase comfort for the user by absorbing the resistance to rolling caused by small stones, making it easier to push.

Special notes for soft PU wheels:

• Trade-off: because of its softer composition, the parking brake requires more effort to apply than with standard composition wheels.
• Please check the final brake adjustment when receiving the rollator. Brakes can be adjusted easily by:
• Loosening the brake cable lock nut with an 8 mm spanner on the brake assembly at the rear wheels
• Adjust the gap between the tyre and the brake bar by turning the adjustment nut
• An approximately 2 mm gap is usually enough to lock the wheel and have a reasonable force to apply the park brake lever. If this is not enough, then close the gap to 1 mm. More force will be required to use the park brake.
